Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof

Name: Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Brand: szguangzhi
Price: 1 USD

Quality Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof for sale

Brand Name : szguangzhi

Model Number : GZ-Z010233-001

Certification : FDA, SGS, ROHS, LFGB, REACH

Place of Origin : SHENZHEN CHINA

MOQ : 1pcs

Price : To be quoted

Payment Terms : T/T

Supply Ability : 1000000pcs

Delivery Time : 1-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Application : Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller

Product name : Keypad, Stainless Steel ATM Keyboard, Mini usb wired 19 key digital numeric keypad, ATM PINPAD, custom numeric keypad

Warranty : 1YEAR

Weight : 1KG

Connector : 2.54mm Female Connector, 8 pin

Contact Now

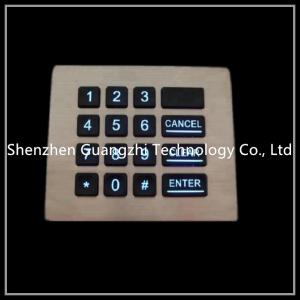

Led backlit stainless steel metal keyboard 16 keys, vending machine, charging post waterproof keyboard

Product name:Backlit Numeric Keypad

Model: GZ-Z010233-0001

Product specification:120*102mm

Name	wholesale LED Backlit Stainless Steel Metal Keypad with 16 Keys
Place of origin	Guangdong, China
Brand name	Long key
Material	Stainless Steel
Application	ATM
Protection Level	IP67
Interface	USB/PS2,RS232

Features:

Ø Keypad made of high quality stainless steel

Ø Customizable layout, dimension and installation design

Ø 16 keys: 10 numeric keys and 6 function keys

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Ports for optional eight external function keys, beeper and guide light

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø IK Protection Class DIN EN 50102:IK07

Main Application:

Kiosk, Info Terminal, Vending machine, Access control, Industrial control, Gaming machine.

Reliability and Performance Data

Ø Key lifetime > 3,000,000 cycles per key

Ø Force on keys: 2.5~3.5 N

Ø Key travel: >0.45mm

Ø Wide voltage input: 5V DC +/- 10%

Ø Running lifetime > 10 years

Environment Requirements

Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø Operating temperature range: 0℃- 60℃

Ø Storage temperature range: –25℃ - 80℃

Ø Relative humidity: 30%~90%

Ø Atmospheric pressure: 60~106 KPa

Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
